6FT X 12FT Temporary Chain Link Fence Panels With 38mm Round Pipe Frame
Temporary chain link fence is also called mobile fence mesh, temporary police. Our temporary chain link
fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular in
Australia, American, England,We also can product according the buyers details drawing for it.
and give the buyers the best suggesting
Materials: Low carbon steel wire, Galvanized wire , PVC coated wire
Features: strong, with wide applications , convenient installation , lower price , safe and flexible
The common Temporary Chain Link Fence Panel

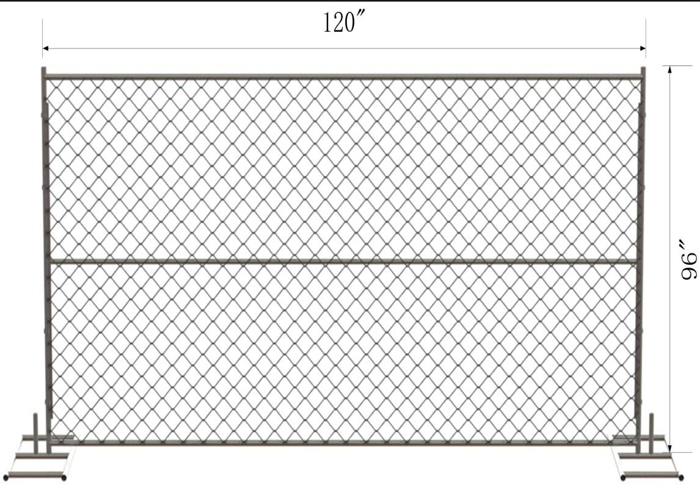

Fence panel: 6'x12', 6'x8', 6'x10' and 8'x12'.
Wire diameter: 2.5mm, 2.8mm, 3mm, 3.2mm
Mesh size: 50x50mm, 60x60mm
Frame pipe: 32mm, 42mm
Frame pipe thickness: 1.5mm, 2mm, 2.5mm
Middle pipe: 25mm, 32mm
Middle pipe thickness: 1.5mm, 2mm, 2.5mm
| Frame and middle pipe | Mesh size | W ire diameter | Surface Treatment | Panel Width | Height |
| 25x1.2/1.5mm 32x1.2/1.5mm
42x1.2/1.5mm
48x1.2/1.5mm | 50x50mm
60x60mm 70x70mm
75x75mm
100x100mm | 2.0mm 2.5mm 3.0mm 3.2mm 3.5mm 4.0mm | Galvanized and PVC coated or hot dipped galvanized | 2.00m
2.40m 2.50m 2.90m 3.65m | 1800mm 2000mm |
| 2100mm |
| 2400mm |
The metal base of Temporary Fence Panel:
The metal base are made of hot dipped galvanized pipes, the T parts of the base is inserted
into the base part and the worker will do both welding on both top and bottom part to make
sure the T parts is strongly welded into the base, which make the base more strong.
Temporary Fence Panel Advantages :
1. No bolting- No Drilling
2. Self-supporting counter weight base
3. Superior safety and security
4. Very easy to install and relocate
5. Three basic components: fence panel, base and clip
6. Several types of fence panel and base are available.
