858 High Qulity Double Weft Welded Wire Mesh Panel

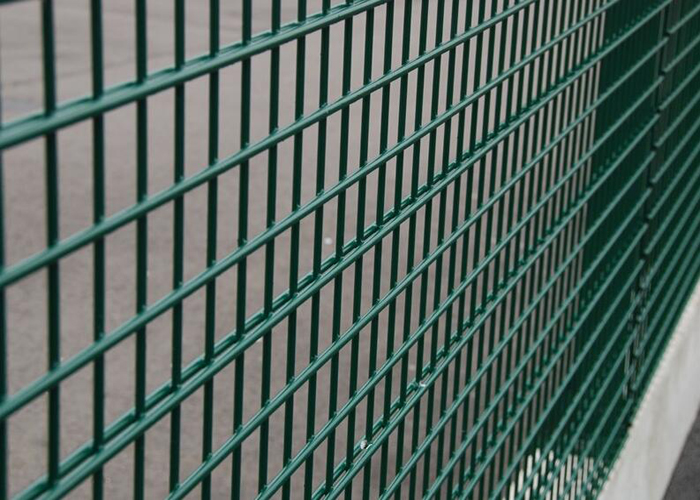

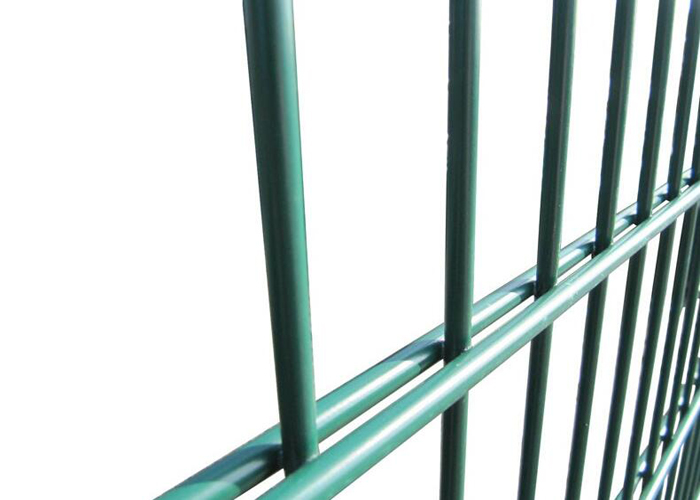

Double weft wire fence is also called double wire fence, double horizontal fence. Using high quality low carbon steel wire as raw material. It's welded by a vertical wire and two horizontal wire, which makes the double wire fence more robust and durable than the single wire fence. The optional wire diameter has 6mm*2+5mm*1, 8mm*2+6mm*1.The diameter of the wire is thicker, so that the overall structure of the fence is very strong.
858 Welded wire mesh fence panel size as follows
| Height*Width Panel mm | Mesh size mm | Wire diameter mm | Wire diameter mm | Wire diameter mm | Post of height mm |
| 630*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 1100 |
| 830*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 1300 |
| 1030*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 1500 |
| 1230*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 1700 |
| 1430*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 1900 |
| 1630*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 2100 |
| 1830*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 2400 |
| 2030*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 2600 |
| 2230*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 2800 |
| 2430*2500 | 50*200 | 8*2+6 | 6*2+5 | 6*2+4 | 3000 |
Advantage:
1. Vandal resistant, Low maintenance
2. Strong and reliable security
3. Simple structure, Attractive appearance
4. Easy installation, Convenient transport
Application:
1. Public building fence
2. Private place fence, Where visibility is desirable
3. Residential perimeter fence
4. In Parks, Zoos and nature reserves
We also can supply the post together
Post:
Square Post: 50*50mm,60*60mm,80*80mm,100*100mm (thickness 1.5mm-2.5mm)
Rectangular post: 80*60*2.5mm, 120*60*3mm
Peach Post: 50*70mm,60*90mm,70*100mm(thickness 1.5mm-2.5mm)
Post height: 1100-3000mm (remain 500mm under the ground)
