V Curved Welded Mesh Fence Panel 50X150MM Used For Security Fence 4mm Diameter
This reinforcement welded wire mesh panels are made of ribbed steel bars bonded via spot welding for
slab and wall constructions. The ribbed steel rod used can improve bonding to the concrete and minimize
any concrete cracking that may occur as a result of concrete shrinkage.
Wire mesh fence with square post
Specification of Square Post
Size: 40*40mm, 40*60mm, 60*60mm, 60*80mm, 80*80mm
Thickness: 1.2mm, 1.5mm, 2.0mm
Height: 1.8m, 2.0m, 2.3m, 2.5m
| Welded Mesh Fence Panel |
| Mesh-A-T1 | Mesh-A-T2 | Mesh-A-T3 | Hight | Width | Line Wire x Cross Wire | Nos. of Curves | Post Length | Nos of Brackets |
 |  |  | 1230 | 2500/2750/3000 | 4.0×4.0 4.0×4.5 4.0×5.0 4.5×4.5 4.5×5.0 5.0×5.0 | 2 | 1600 | 3 |
| 1530 | 2500/2750/3000 | 3 | 2000 | 3 |
| 1730 | 2500/2750/3000 | 3 | 2200 | 4 |
| 2030 | 2500/2750/3000 | 4 | 2500 | 4 |
| 2230 | 2500/2750/3000 | 4 | 2800 | 4 |
| 2430 | 2500/2750/3000 | 4 | 3000 | 5 |
| 3030 | 2250/2500 | 6 | 4000 | 6 |
| ♦Mesh-panel-type-B and C are different type for mesh size. You can contact us for more information about them. |
| Curved Welded Wire Mesh Panel |
| Panel Height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
| 0.63m 1.03m 1.23m 1.53m 1.73m 1.83m 2.03m 2.43m | 2.0m 2.5m 3.0m | Gal + PVC Painted 3.85mm/4.0mm 4.85mm/5.0mm Gal + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm | 50*200mm 55*200mm 50*150mm 55*100mm | 2 |
| 2 |
| 2 |
| 3 |
| 3 |
| 4 |
| 4 |
| 4 |

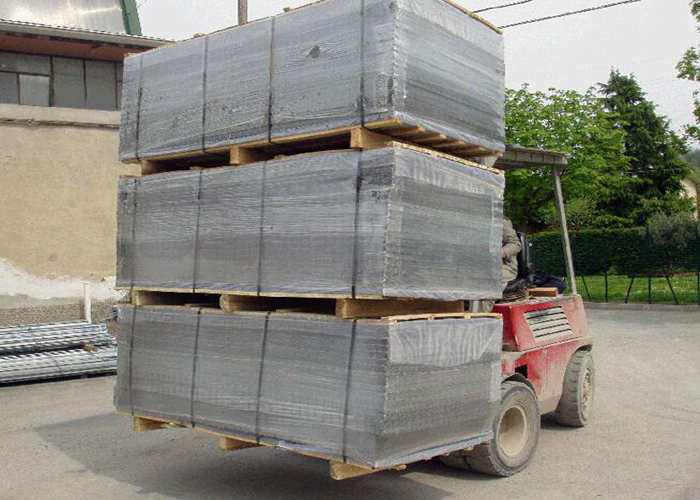

Triangulare Welded Mesh Panel Packaging :
it has rubber mat at the bottom of the pallet to avoid the pallet destroying the panels;
it has 4 metal corners to keep the pallet more strong;
it has metal plate under the plastic bandage to reduce the apressure of fence panels;
it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by
other pallets.
