Heavy duty livestock cattle yard panels Australia standard 1.8m high 6 rails
Description:

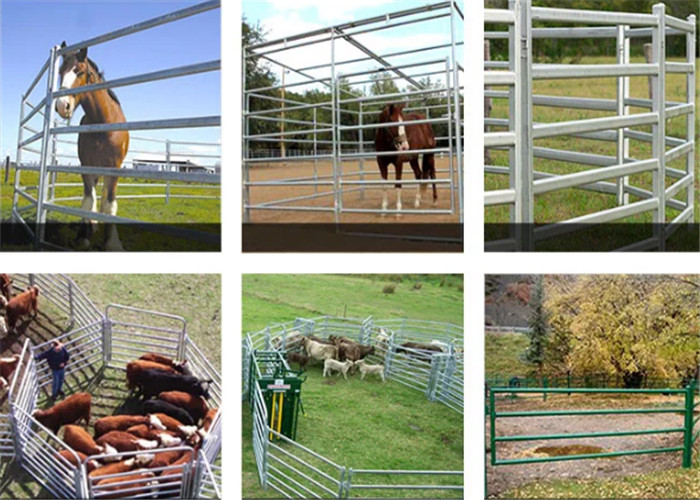

Cattle panels is designed for the safe and effective flow of cattle in the lead up to the race, reducing stress on livestock by separating operator and beast.
Cattle panel can have different shapes, below are the popular shapes and specification on the market.
This material is galvanized on both the inside and the outside of the material and has the highest galvanized coating for this type of steel on the Australian market.
We use 3 different size materials for the rails in our cattle yard panels and gates:oval tube,round tube and square tube.
Our standard cattle yard panels are either 2.1m or 3.4m long and 1.8m high.
Specification:
| Design 1 | Oval rail with square vertical tube |
| Height | 1.6m, 1.8m. |
| Width | 2.07m, 2.09m, 2.2m, 2.9m |
| Horizontal oval rail | 30X60mm, 40X80m,42X115mm |
| <p "">Rail quantity | 4pcs, 5pcs, 6pcs |
| Vertical square tube | 40x40mm,50x50mm,75x75mm |
| Welded parts | U lugs, L lugs, caps, panel base |
| Accessories | pins |
| Surface treatment | Hot dipped galvanized |
| Contact us. Get a quote and more Info. |
| Design 2 | Rails and vertical post are all square tube |
| Height | 1.8m. |
| Width | 2.07m, 2.09m |
| Horizontal square rail | 40x40mm, 50x50mm |
| Rail quantity | 6pcs |
| Vertical square tube | 40x40mm,50x50mm |
| Welded parts | U lugs, L lugs, caps, panel base |
| Accessories | pins |
| Surface treatment | Hot dipped galvanized |
| Contact us. Get a quote and more Info. |
| Design 3 | Rails and vertical post are all round tube |
| Height | 1.8m. |
| Width | 2.07m |
| Horizontal round tube rail | 42mm or 48mm O.D. |
| Rail quantity | 6pcs |
| Vertical round tube | 42mm or 48mm O.D. |
| Welded parts | U lugs, L lugs, caps, panel base |
| Accessories | pins |
| Surface treatment | Hot dipped galvanized |
| Contact us. Get a quote and more Info. |
| Design 4 | round tube with bent bottom base |
| Height | 5ft, 6ft |
| Width | 9ft, 10ft,12ft |
| Frame and rail | 32mm or 42mm O.D. |
| Rail quantity | 6pcs |
| Welded parts | U lugs, L lugs, caps, panel base |
| Accessories | pins |
| Surface treatment | Hot dipped galvanized or powder coated |
| Contact us. Get a quote and more Info. |
Feature:
1:Cost-effective: give your corral years of service and minimal maintenance at a low in price
2:Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
3:Livestock Protection: no sharp edge, very smooth welding spot finishment
4:Environment Protection: connection with welded to bracket lugs and joining pins, no need to digholes or lay foundations. And it benefit grassland protection.
5:Robust: interlocking system makes the fence very stable; quality steel and fully welding makes the panel more strong, heavy duty and anti-broken; high zinc or PVC coated make the fence durable
Application:
Mainly used for cattle, sheep, horses, etc.
Packing:
1. fence panel:plastic flim+wood/metal pallet
2. fence post:every post pack with a plastic bag(the cap is covered well on the post)+metal pallet
3. accessory:small plastic bag+carton box
4. we can also do as your demand.
