Description

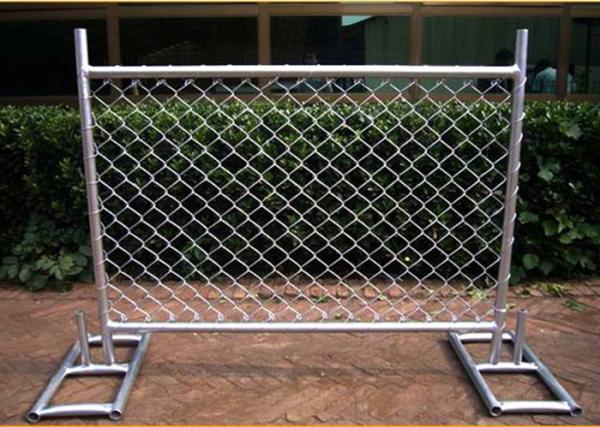

Chain Link Temporary fence is also known as Temporary fencing, temporary fence panels, portable fence, Temp fence,temp fencing and mobile fence.It is consist of chain link panel, round tube frame, plastic feet, stays and clamps.This kind of fence has a superior structure, the mobility and environmental suitability is very good.
Specification:
| Material | low carbon steel wire, Q195 |
| carbon steel pipe, Q235 |
| AU Standard Specification | Wire diameter:4.0mm Mesh opening:58x58mm,60mm*60mm,50mm*50mm Frame pipe:32mm O.D.33.4mmO,D Pipe thickness:2.0mm--3.0mm HXL:2.1x2.4m |
| Surface finish (Hot dipped galvanized) | Wire zinc coating About 200g/m2(28 micron) Pipe zinc coating About 300g/m2(42 micron) |
| Fence base | Hot dipped galvanized,sizes are suit to pipe diameter. |
| Blow moulded plastic concrete feet | 600x220x150mm,customized colors |
| Brace pole | Also available, usually one support leg for four fence panels |
| Package | On metal pallet |
Type one: Chain link mesh temporary fence
Type two: Welded mesh temporary fence
Type three: Steel pipe or Steel bar temporary fence
Height:0.8m-2.4m
Width:2m-3m
Chain link mesh wire thickness: 2mm-4mm,opening hole:40mmX40mm,50mmX50mm,60mmX60mm
Welded mesh: wire thickness:3.0mm-4.0mm,opening: 50mmX100mm,50mmX150mm,50mmX200mm
Frame: pipe: 10mm,16mm,20mm,25mm,32mm,40mm
Material: Low Carbon Steel Wire, Galvanized Wire,Steel Pipe
Finished: Electric Galvanized, Hot Dipped Galvanized, Polyester Painting.
Polyester Painting Color: Any RAL Series Color ( Normal RAL6005-Dark Green,RAL9005-Black)
Steel Clamps: On request
Bottom foot: Steel plate, Steel pipe frame,plastic foot etc on request.
Chain link fence features:
1) It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
2) Weather resistant and durable, and will last much longer; The temporary fences are light and easy to handle, while being strong and robust at the same time;
3) The feet are removable which makes transportation and storage much easier and more efficient
